24V 36V 48V Ebike Controller Kit 500W Brushless Controller and LCD Display | 25A Brushless Motor Controller for Ebike, Electric Scooter Controller Replacement or Upgrade, Hall E Bike Speed Controller

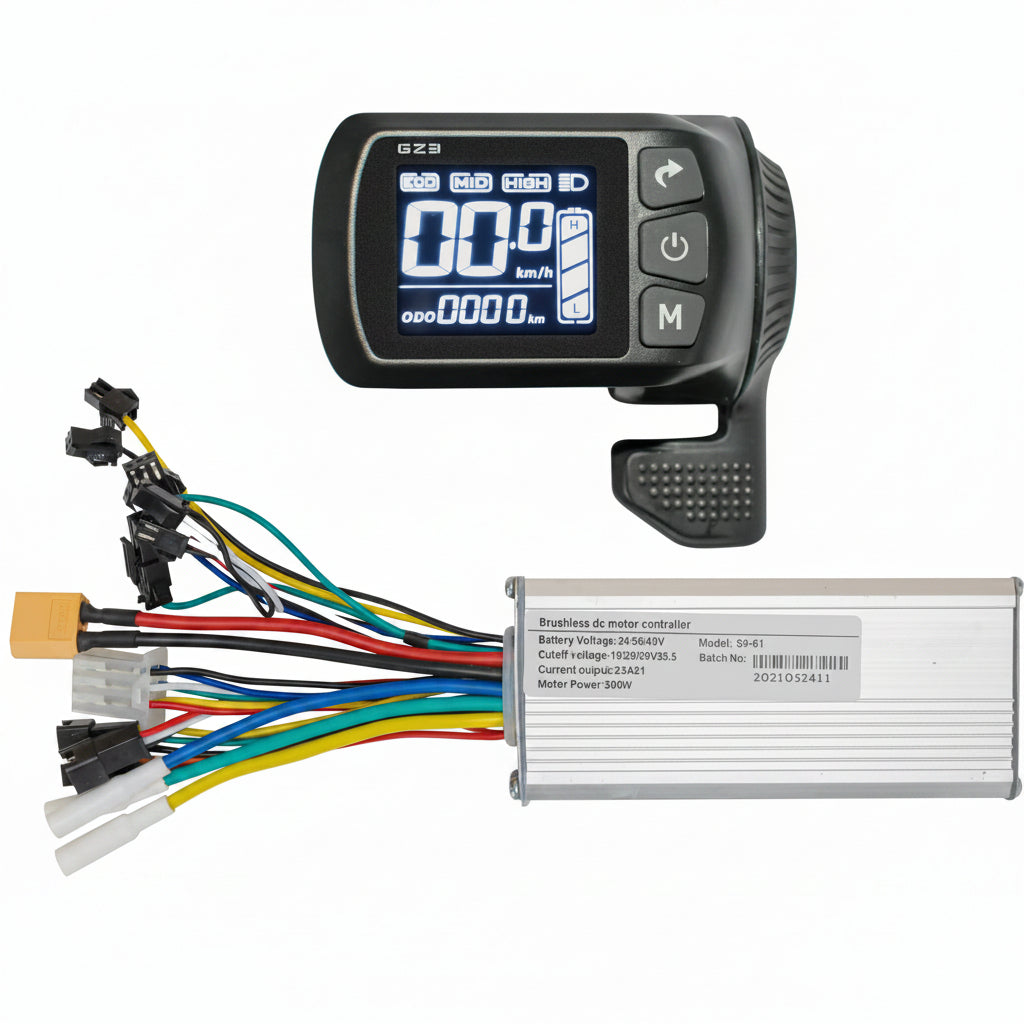

36V-48V 500W Electric Bike Brushless Motor Controller and LCD Display Kit includes a brushless DC motor controller and LCD display designed for electric bike controller replacement and upgrade applications. The 25A controller is suitable for 500W brushless motors and supports electric bikes, electric bicycles, electric scooters, and electric tricycles. The LCD display mounts to 22mm/0.8in handlebars and provides riding information including real-time speed, battery power, riding time, and mileage.

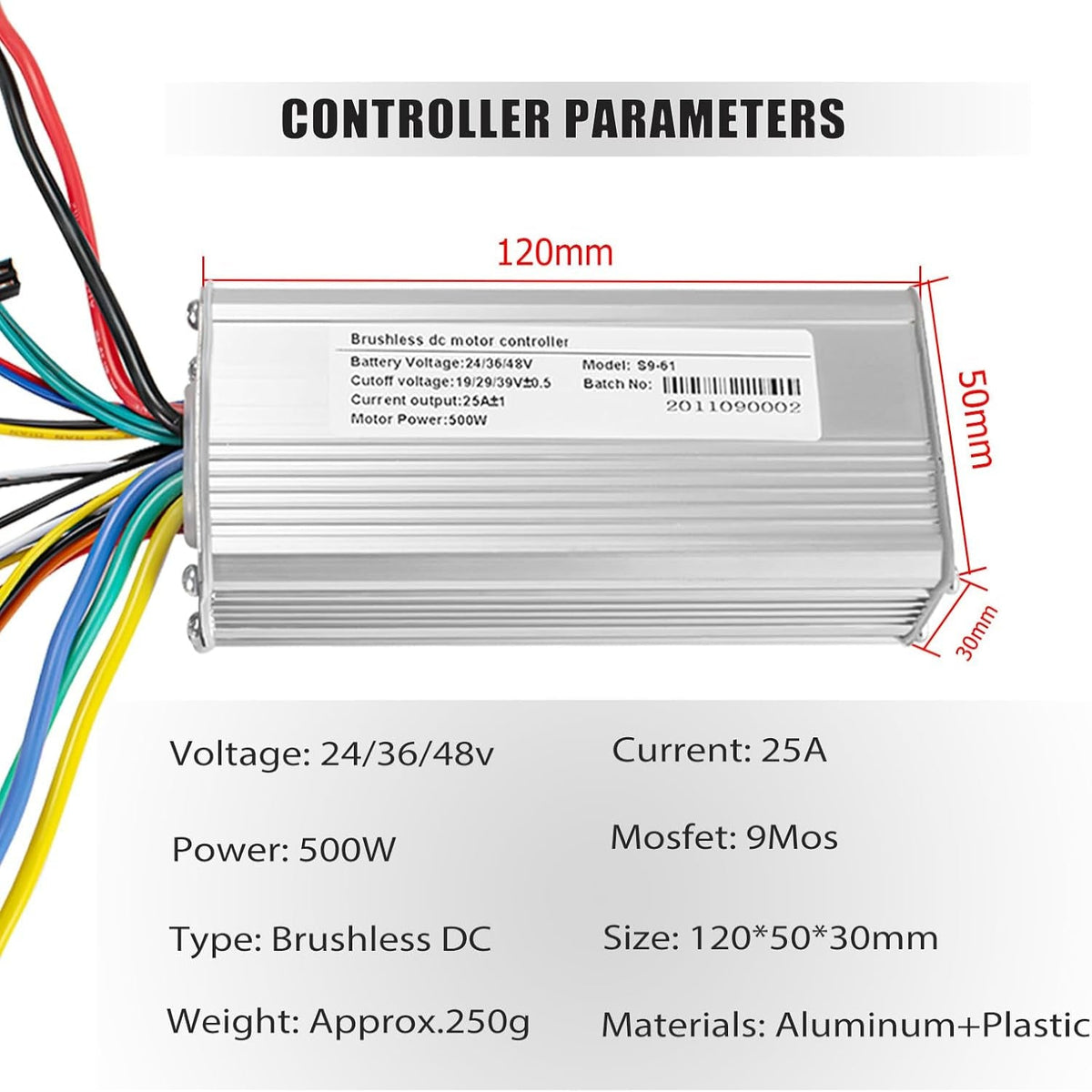

Specifications

• Bike Type: Electric Bike

• Controller Power: 500W

• Controller Current: 25A

• Voltage: 36-48V

• Motor Compatibility: 500W brushless motor

• Motor Sensor Compatibility: Hall sensor motor

• Mounting Bracket Diameter: 22mm/0.8in

• Number of Speeds: 1

• Suspension Type: Front

• Brake Style: Disc

• Specific Use: Replacement

• Gear Shifter Type: Thumb

• Drivetrain Type: Electric Motor

• Electric Assist Type: Electric Assist

• Item Weight: 0.43 kg

• Age Range: Adult

• Wheel Material: Aluminum

• Unit Count: 1 Count

Features

• Brushless Motor Controller: Designed with heat dissipation, low-noise operation, and durable construction for compatible brushless motor systems.

• Control Functions: Provides speed control along with braking and direction-change control.

• Protection Functions: Includes brake power-off, undervoltage protection, and overcurrent protection.

• LCD Riding Data: Displays real-time speed, battery power, riding time, total mileage, and single-trip mileage.

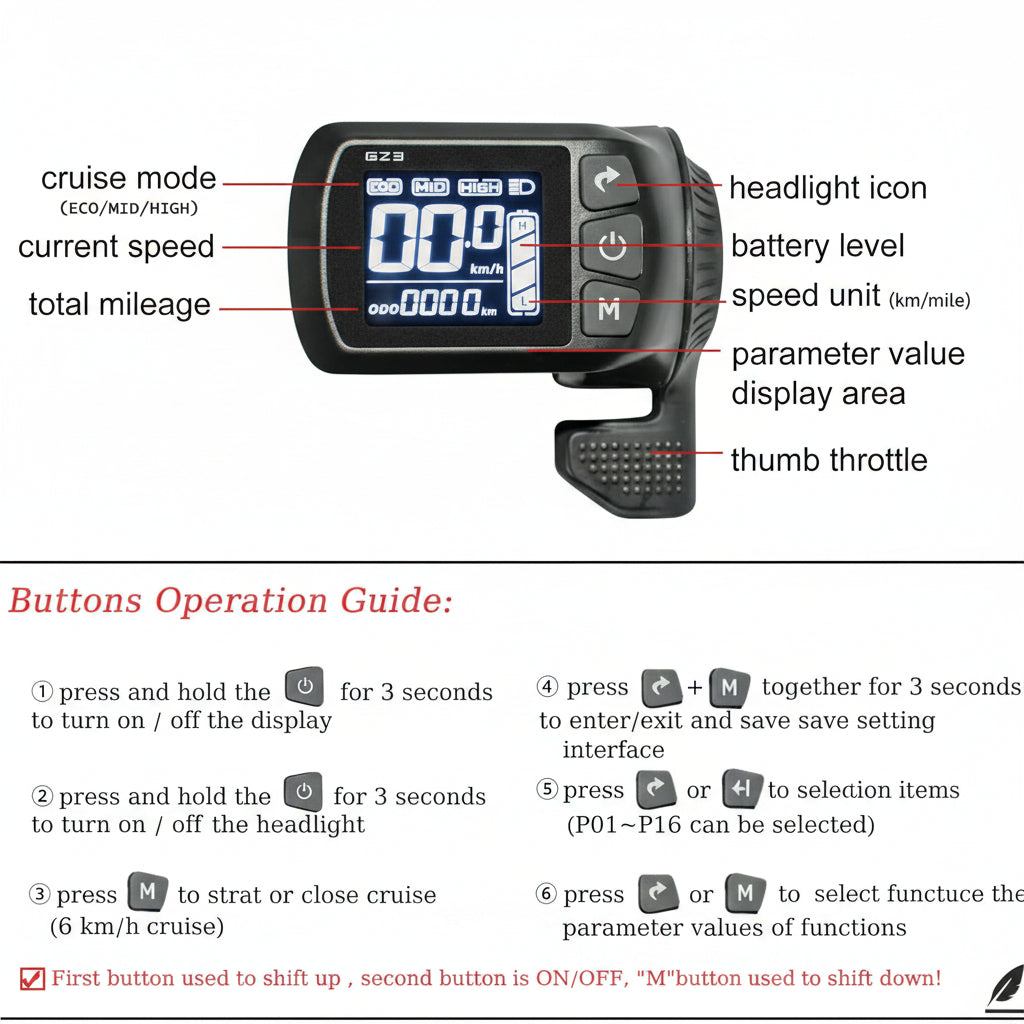

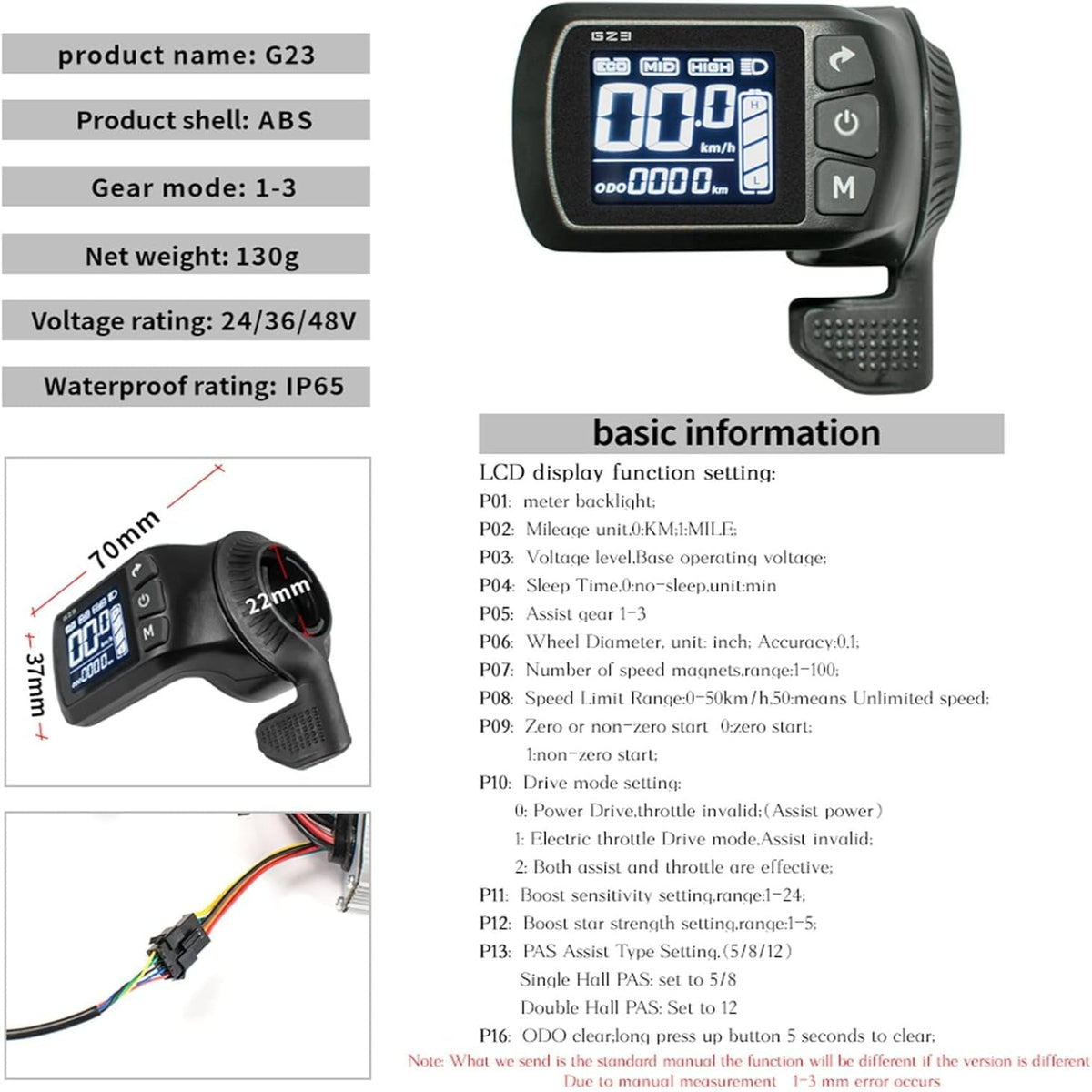

• Adjustable Parameters: Three buttons on the LCD screen allow supported parameters to be configured.

• Display Design: The LCD display is waterproof, heat-resistant, and backlit.

• Thumb Throttle: The display option with thumb throttle integrates the accelerator control with the LCD screen.

• Application Compatibility: Suitable for electric scooters, e-bikes, electric bicycles, and electric tricycles.

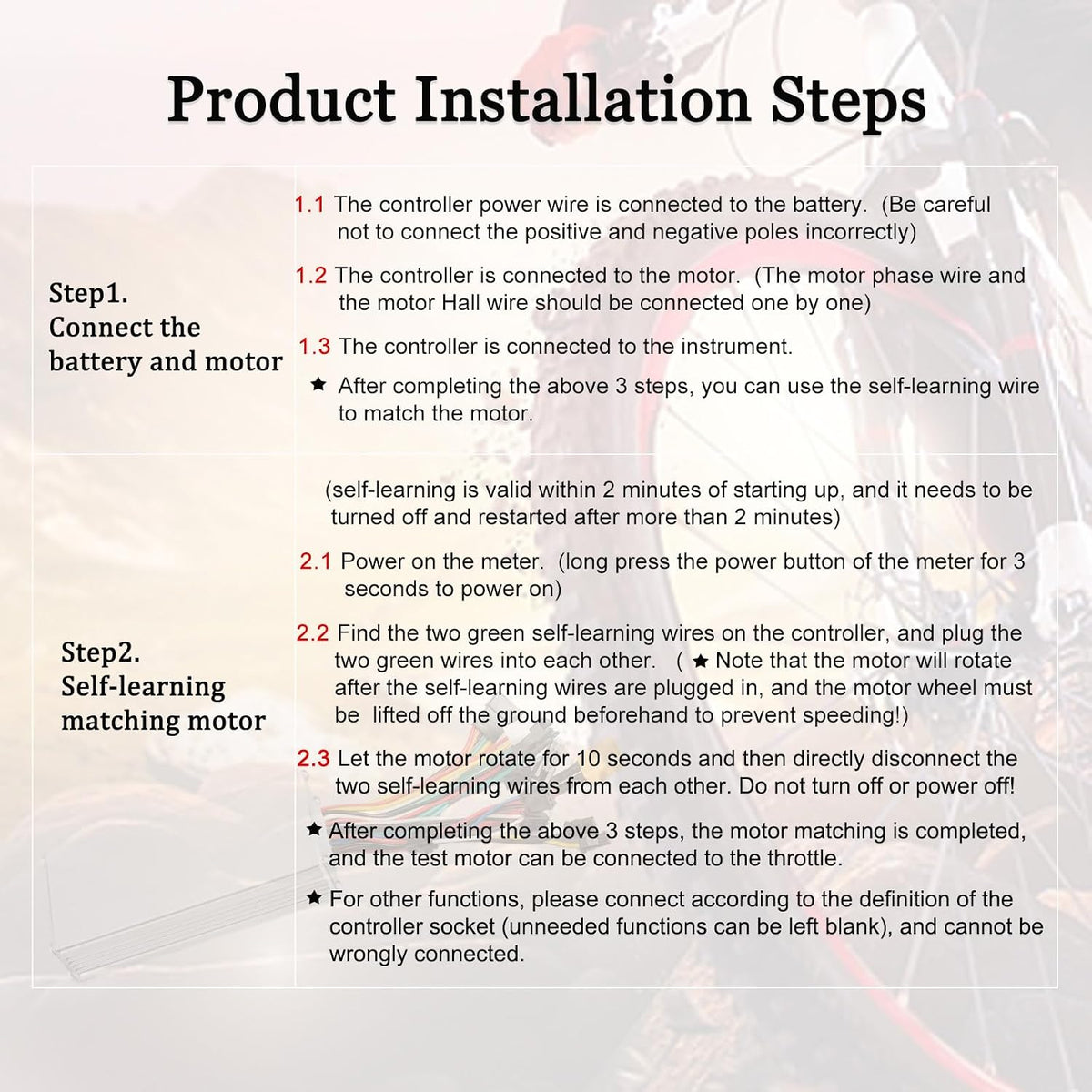

Installation

• Handlebar Mounting: The LCD display includes a mounting bracket suitable for handlebars with a 22mm/0.8in diameter.

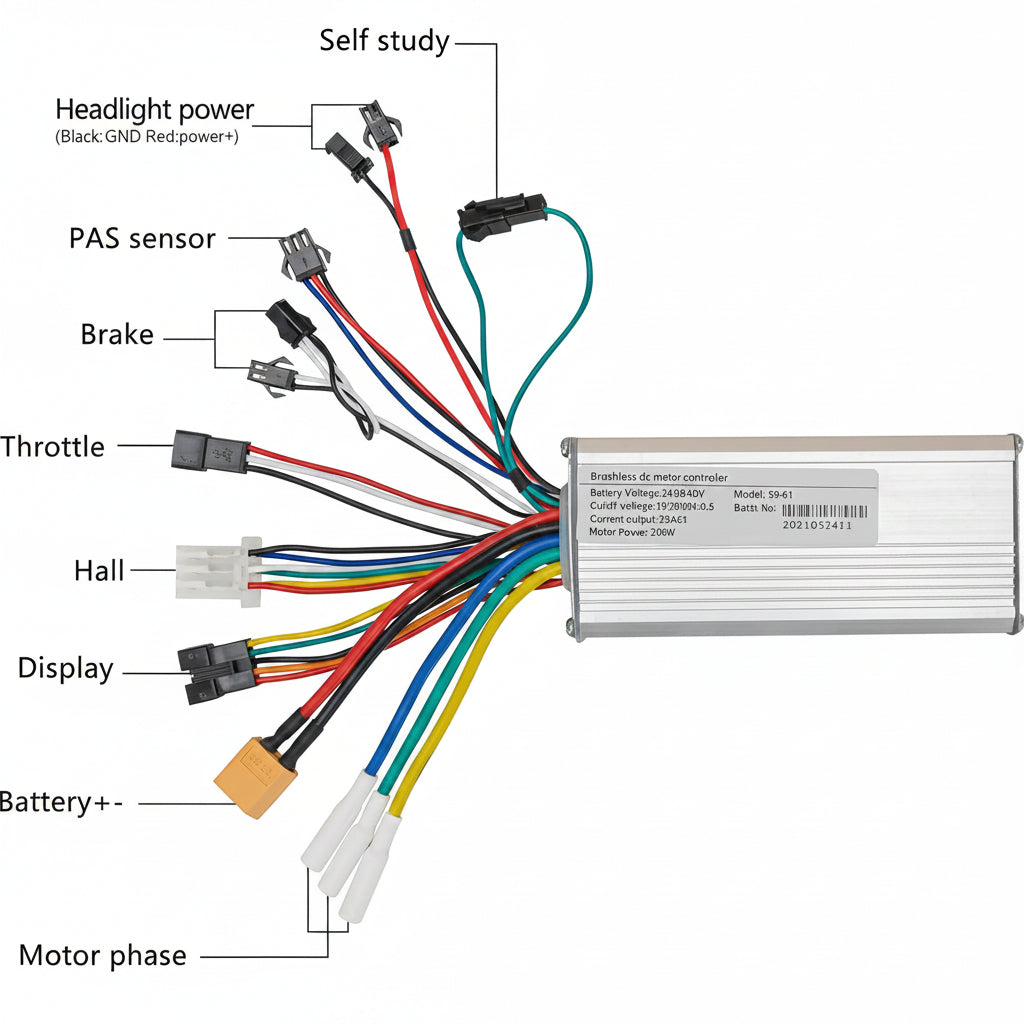

• Wiring: Controller interfaces include instruction labels for connecting the wiring harness to corresponding accessories.

Available Models

• Display Options: GZ3 or S866

• Throttle Option: One display option includes a thumb throttle, while the other does not.

Package Contents

• Brushless Controller: 1 x Brushless Controller

• LCD Display: 1 x LCD Display

Warranty

• Product: 6 months limited warranty
